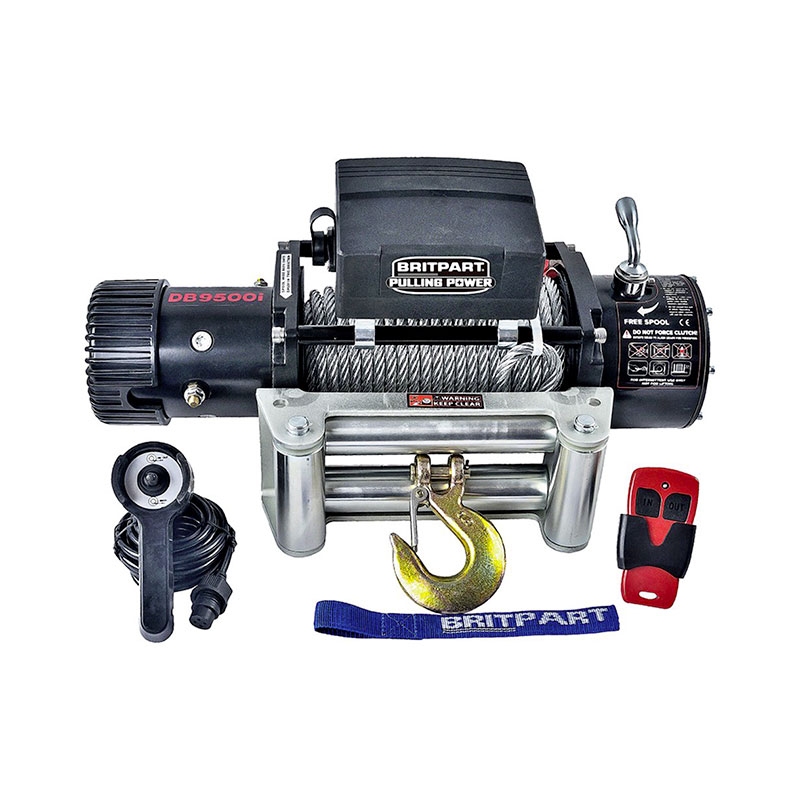

Naviják Britpart DB9500i

Britpart DB9500i Features
- Planetary gear system for fast line speed
- Automatic load-holding brake
- Free spooling
- Power in and power out
- 3.6Kw (4.8Hp) heavy duty series wound DC motor
- Low electric current
- Hardened drum

Specification
- Rated Line Pull - single line: 4,309kgs (9,500lbs)

- Gear Reduction Ratio: 212:1

- Motor - series wound - 12 volts: 3.6Kw (4.8Hp)

- Drum Size (D x L): 63 x 228mm (2.5 x 9”)

- Cable supplied - Galvanised aircraft cable with minimum break force 14,400lbs: 9.53mm x 30.5m (3/8” x 100’)

- Overall Dimension (L x W x H): 548 x 160 x 254mm (21.57 x 6.3 x 10”)

- Net Weight: 42.1kgs (92.8lbs)

- Mounting Bolt Pattern: 254 x 114.3mm (10 x 4.5”)
